S & H Fuse Cutout

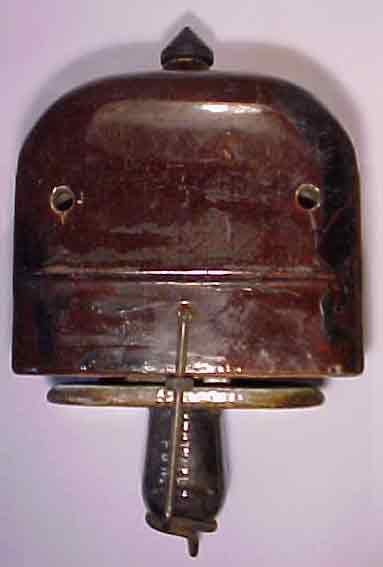

S & H Cutout #1

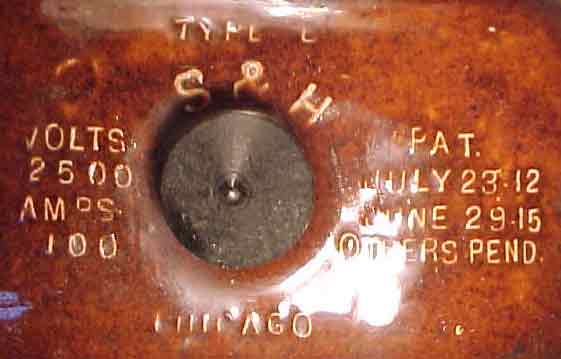

Marking:

(Embossed on top)
               Type B
          (arc) S & H.
VOLTS                PAT.
 2500             JULY 23-12
AMPS           JUNE 29-15
  100           OTHERS PEND.
             CHICAGO

(Embossing on "stick")
PAT.APL.
    FOR.

Color:
Chocolate brown
Dimensions:
6-1/4 inches wide (16 centimeters)
6-5/8 inches tall (17 centimeters)
10 inches from end to end (25 cm)
Notes:
This came out of a Chicago substation about 2000.  Note the higher amperage this piece can handle.

There is a wood cap on the top that fits into a hole on top.  The cap is held in place by a bent piece of wire screwed to the stem of the cap.

This page created July 23, 2002
