Westinghouse Fuse Cutouts

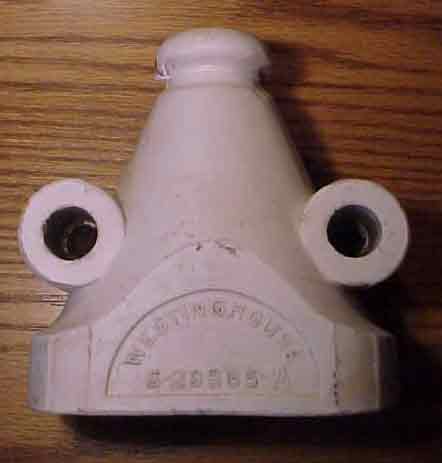

Westinghouse Cutout #1

Marking:

(Recess-embossed)
 (arc) WESTINGHOUSE
S-29865-A
Color:
Unglazed
Dimensions:
5-1/4 inches wide (13.2 centimeters)
5-1/2 inches tall (14 centimeters)
Notes:
The stick is removed by twisting it counter-clockwise.

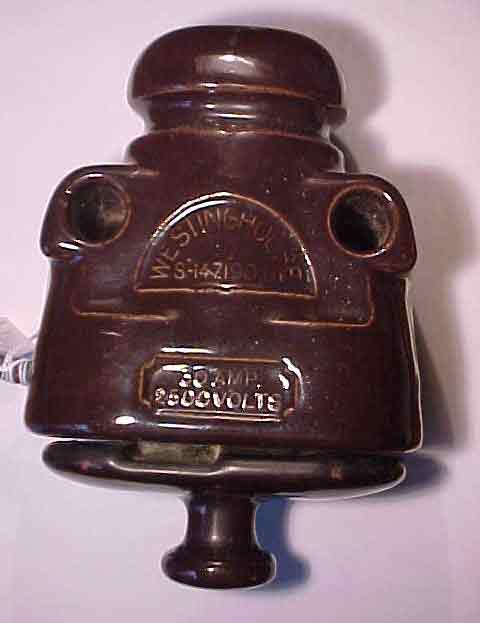

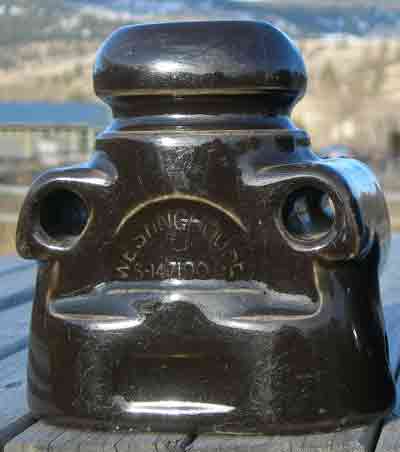

Westinghouse Cutout #2

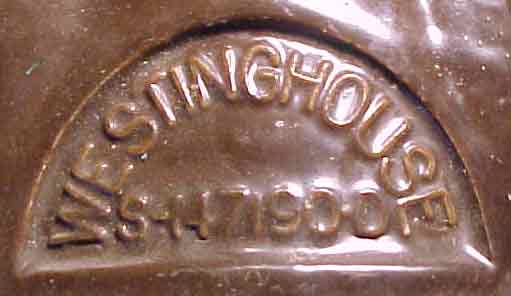

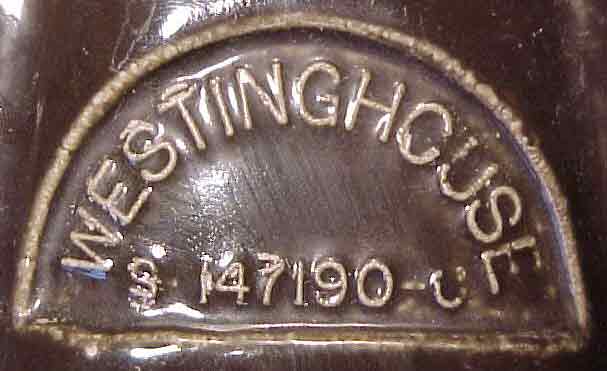

Marking:

(Recess-embossed)
 (arc) WESTINGHOUSE
S-147190-D [The last character might be 0]
[Note: Sometimes the dash is missing]

30 AMP
2500VOLTS



Color:
Dark chocolate
Dimensions:
5-1/2 inches wide (14 centimeters)
5-3/4 inches tall (14.5 centimeters)
Notes:
The stick is removed by pulling it straight out.
Westinghouse Fuse Cutout


Westinghouse Cutout #3

Marking
(arc) WESTINGHOUSE
S-29865-C


Color: Dark Chocolate

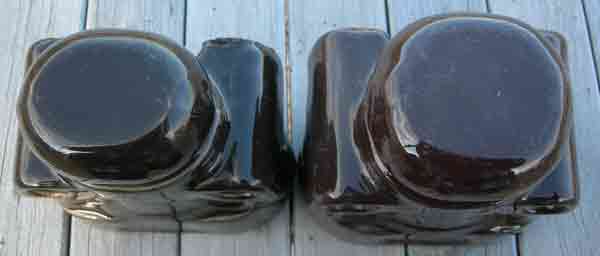

Note: Westinghouse Cutout #3 is smaller than #2. Shown below is #3 on the left and #2 on the right.

Westinghouse Fuse Cutout

Westinghouse Fuse Cutout top

Westinghouse Fuse Cutout bottom

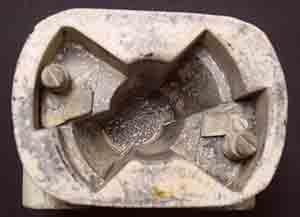

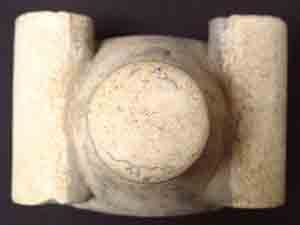

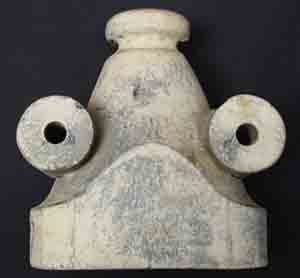

Westinghouse Cutout #4

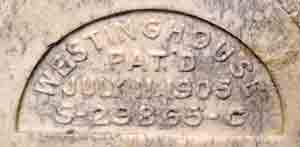

Marking

(arc) WESTINGHOUSE
PAT'D
JULY 11, 1905
S-29865-C

Westinghouse Fuse Cutout Marking

Unglazed

Notes: The patent number associated with the July 11, 1905 date is 794,435.  The last number is a catalog number.


This page created July 23, 2002
Updated April 9, 2004 with Westinghouse Cutout #3
Updated August 2, 2009
